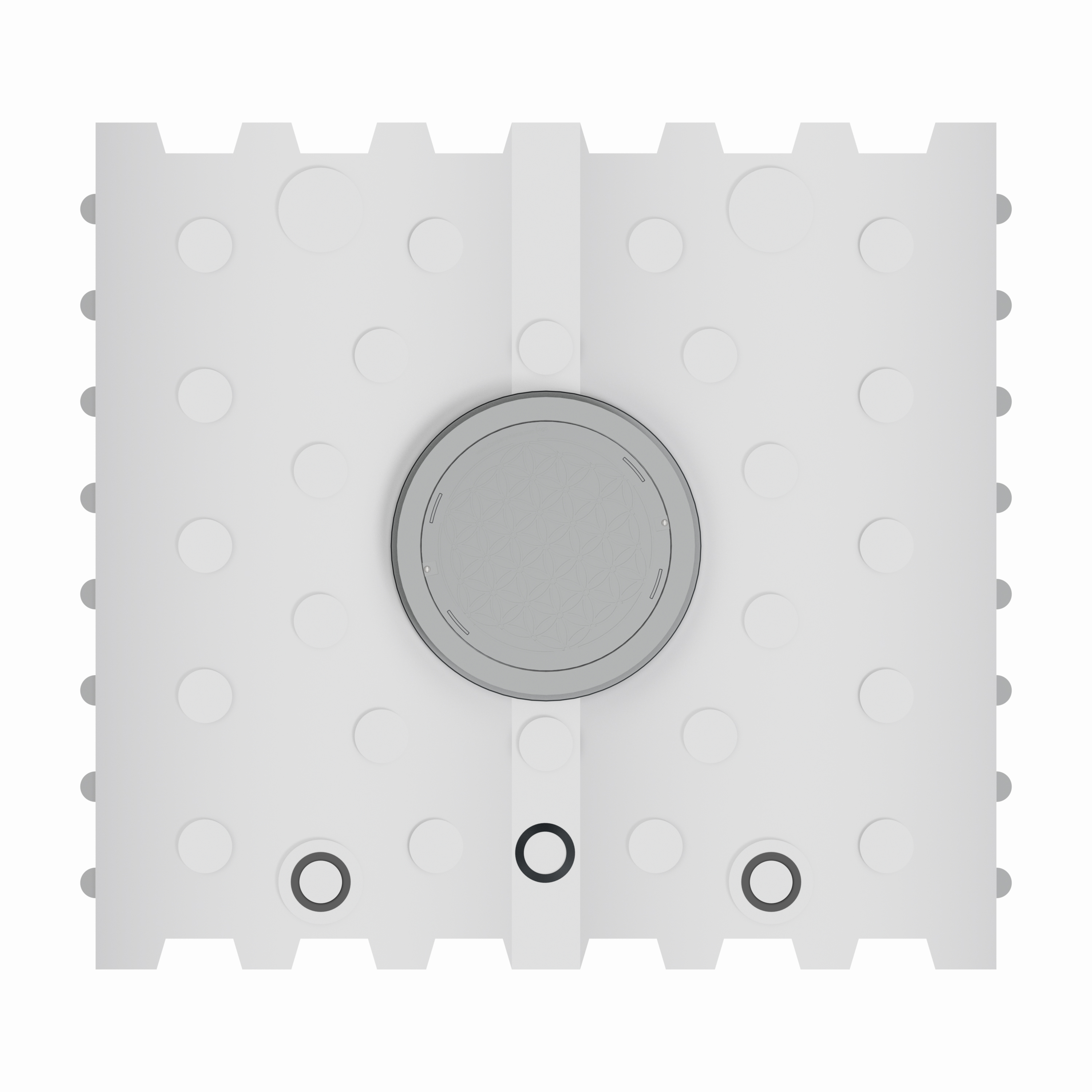

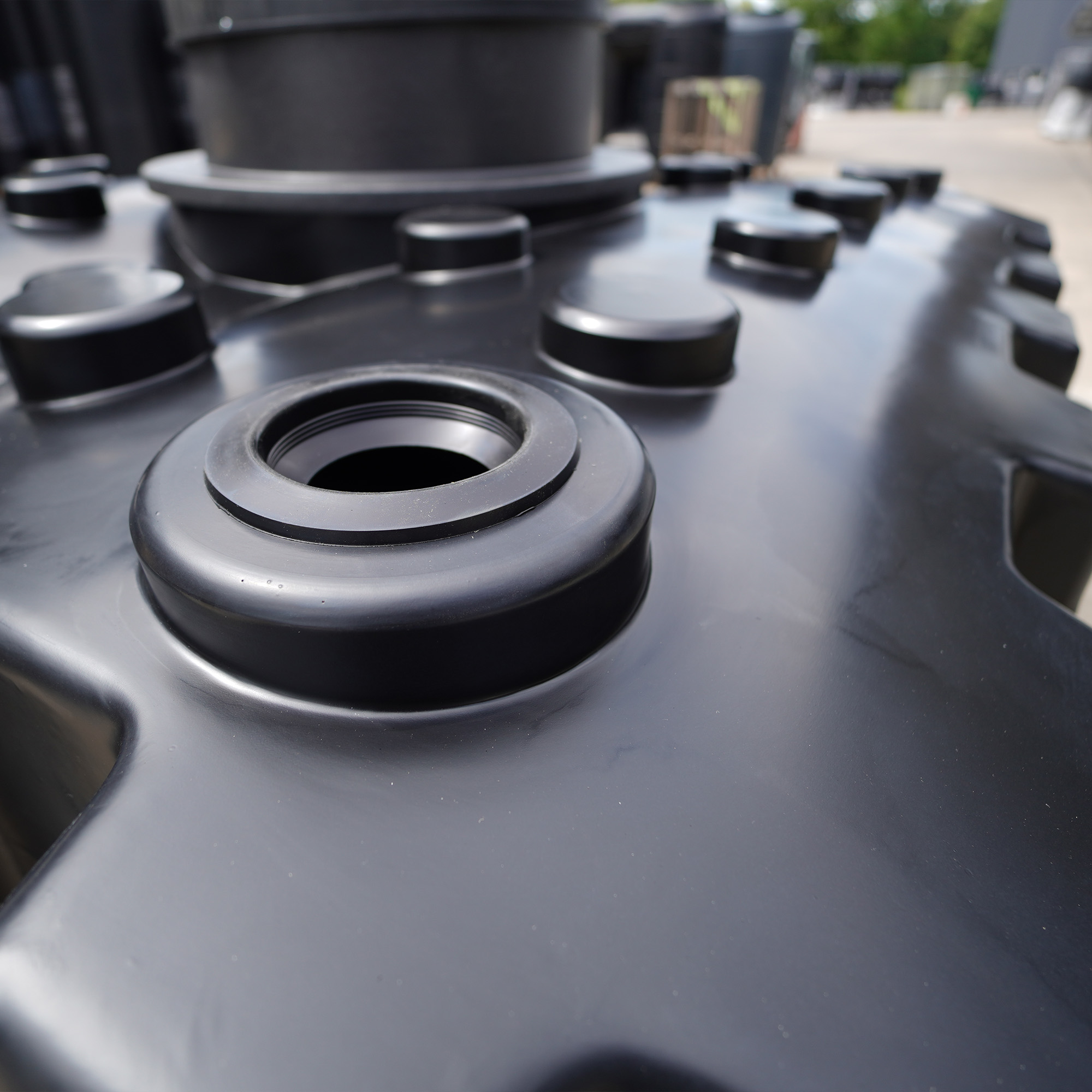

flat tank 5000 liters

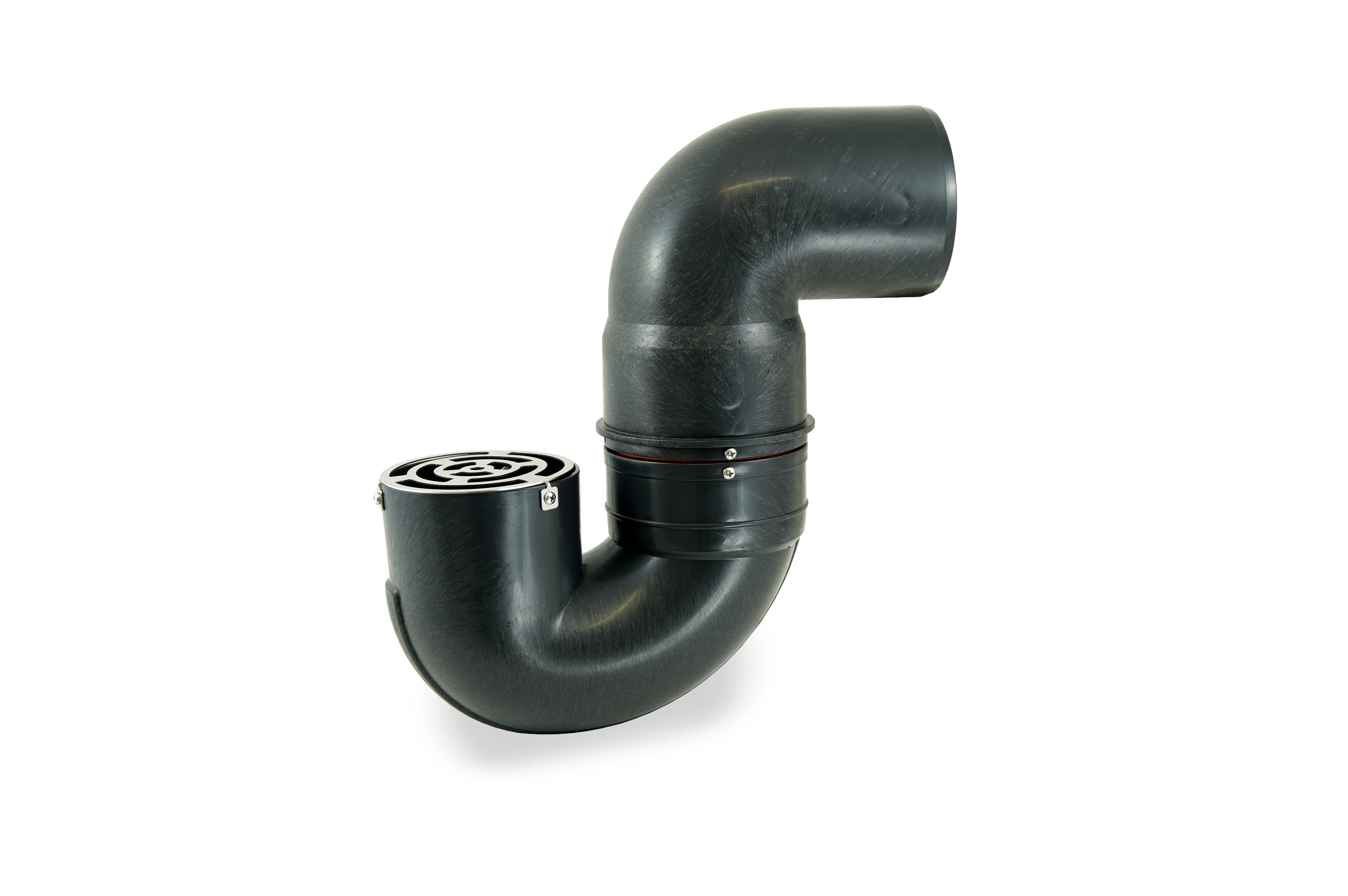

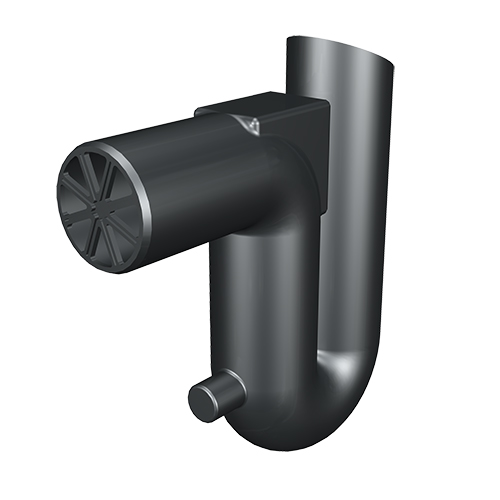

DetailsÜberlaufsiphon DN100montiert an der Innenseite der senkrechten TankwandGeruchsverschluss zum RegenwasserkanalReinigung der Wasseroberfläche durch SkimmereffektKleintierschutz - gegen das Eindringen von Nagetieren

DetailsBeruhigter Zulauf des Regenwassers in den Regenwasserspeicher. Feine Schmutzpartikel sinken langsam zu Boden und bilden eine Sedimentschicht, die das gespeicherte Regenwasser nachweislich positiv beeinflusst. Eine Aufwirbelung der Sedimentschicht wird vermieden, gleichzeitig wird dem Speicherwasser Sauerstoff zugeführt.Technische DatenMaterial: PolyethylenHöhe: 320 mmDurchmesser: 260 mmAnschluss: DN100 (Ø110)

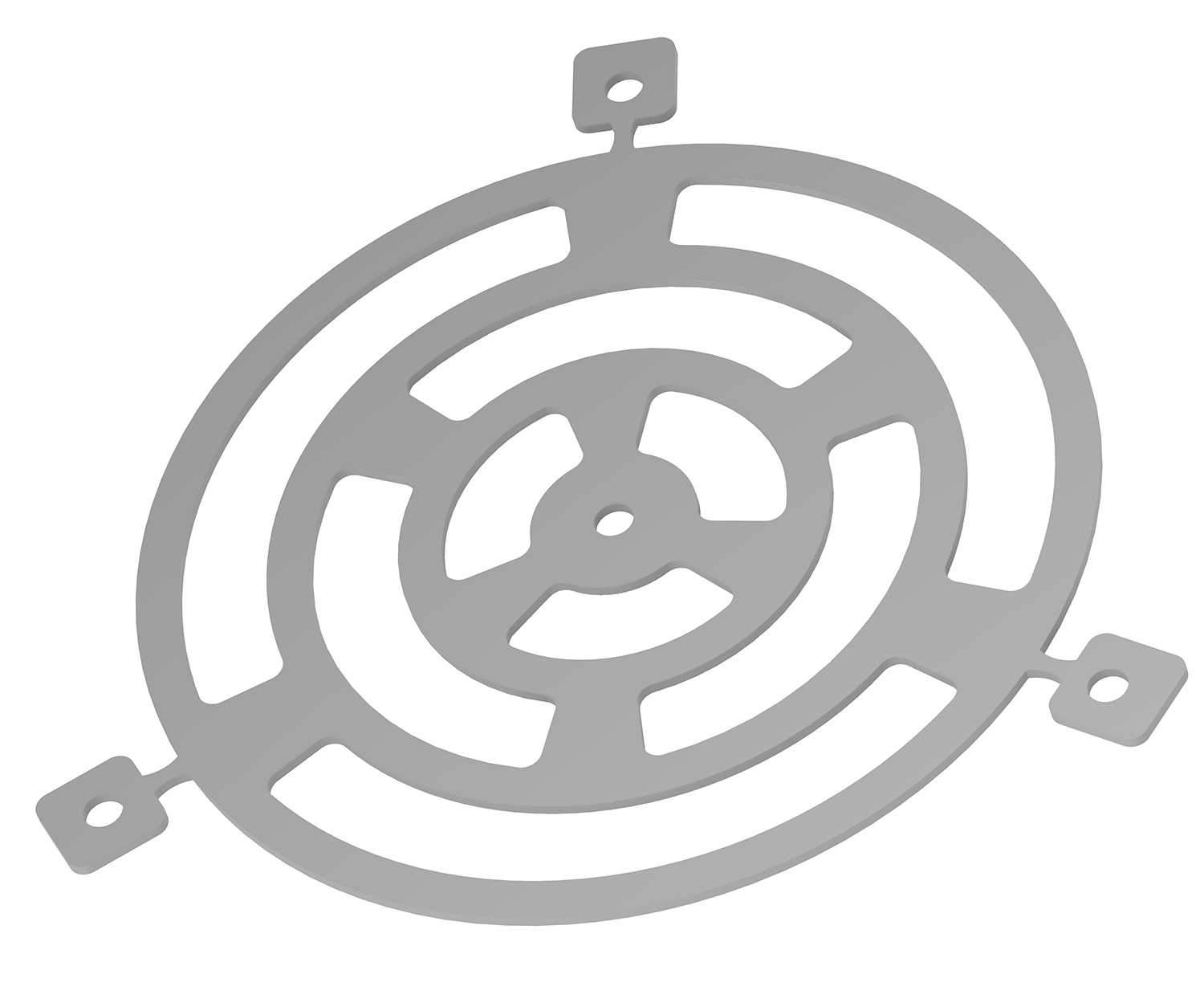

smell closure to storm draincleaning water surface by skimmer effectsmall animal protection on stainless steel - against rodent penetration

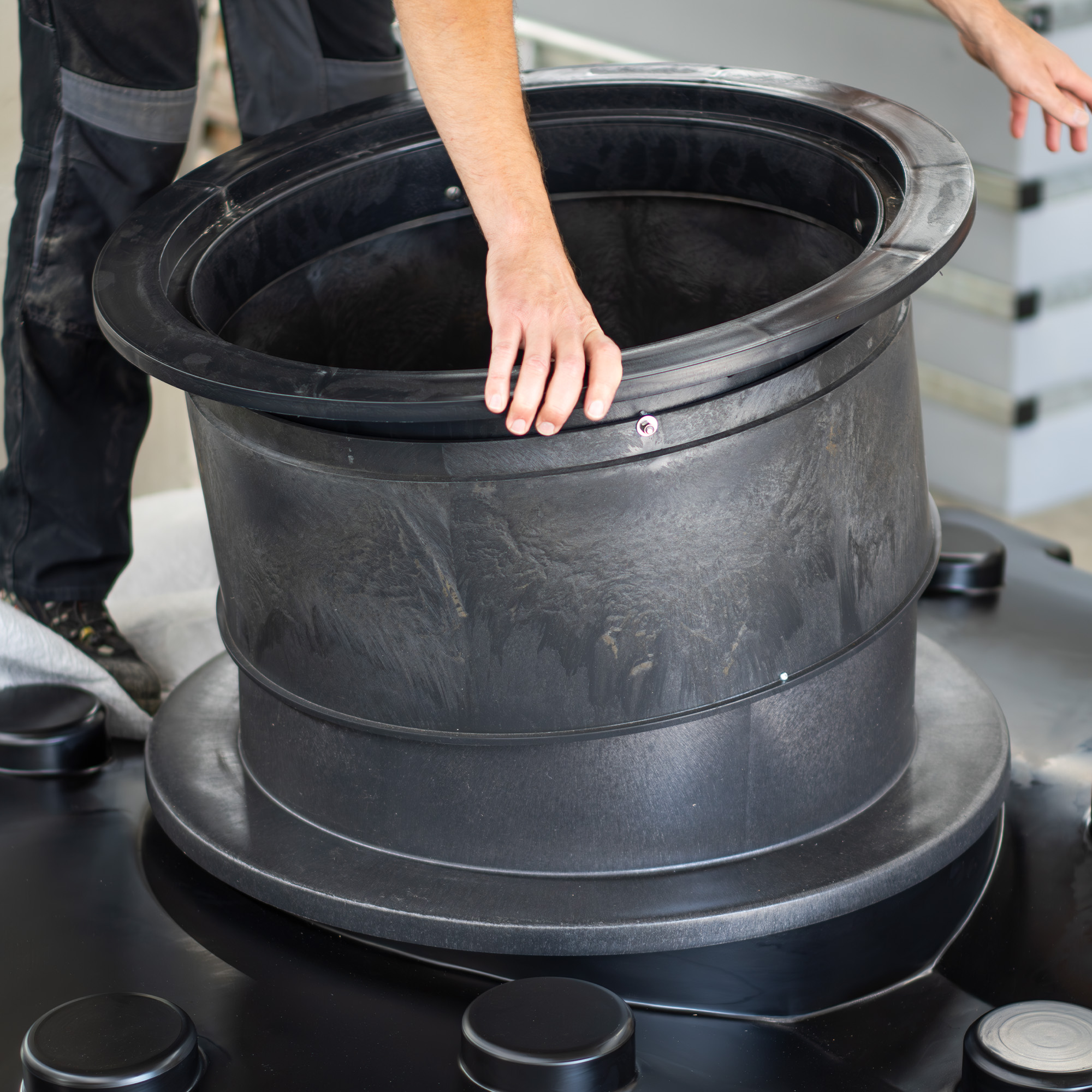

The dome extension DN 600 is suitable for the sliding and telescopic domes of the generation from 03/2021 onwards (please contact us for advice!).

Der Sickerwürfel 205 l eignet sich perfekt für die Rückhaltung, Versickerung und Entwässerung von Regenwasser und behandeltem Abwasser. Der Zulauf in den Sickerwürfel kann per DN 100 oder DN 150 realisiert werden (kann individuell vor Ort entschieden werden). Die Sickerelemente können aneinander gereiht werden und sind zum Schutz vor eindringendem Erdreich mit Geotextil einzuschlagen. Der Sickerwürfel 205 l ist ein montagefreundlicher Bausatz und besteht 6 Seitenflächen inklusive angeformten Montagepins.Das "Starterset Versickerung 205 l" besteht aus folgenden Komponenten:1 Sickerwürfel 205 l4 m² Geotextil Für eine korrekte Auslegung einer Versickerungsanlage sind die örtlichen Bodenverhältnisse ausschlaggebend und sind per Bodengutachten oder einem Sickertest zur prüfen. Anhand der gegebenen Sickerfähigkeit des Bodens ist die Auslegung der Versickerungsanlage anzupassen - bitte lesen Sie dazu die Einbauanleitung bzw. die Anleitung für den Sickertest sehr genau. Technische Daten Material: Polypropylen Gewicht in kg: 10 Anschlüsse: DN 100 / 150 Nutzvolumen: 205 Liter

DetailsAusziehbarer Dom mit PKW-befahrbarar Kunststoffabdeckung (600 kg Radlast). Die Abdeckung ist zweifach verschraubt gegen unbeabsichtigtes Öffnen.Technische DatenDurchmesser: 600 mm / 800 mmHöhe: 720mm bis 920 mm

Specifications in brief:Max. Delivery capacity/flow rate: 100 l/min (6.0 m³/h)Max. Delivery head:  45 m / Pressure: 4.5 barConnection sizes: 1" (inch) IG (female thread)Mains cable length: 15mSuitable for: Rainwater utilization through lateral suction, floating extraction of the clean clear water under the water surface water surfaceMax. Immersion depth: 12m Our automatic GreenLife GAP X120 submersible pressure pump is a modern, powerful and reliable submersible pressure pump. It handles large flow rates with ease and can be used for a wide range of applications, such as irrigation and drainage tasks in clear water. The pump automatically controls the delivery of water according to the user's water requirements. Exemplary applications:  Extraction of rainwater from rainwater systems, tanks & cisternsUse of clear water in or outside a buildingIrrigation of a green area or gardenoperation of sprinklers or sprayers (on average, three sprinklers can be operated simultaneously)pumping out or transferring water, for example from pools - Domestic water supply Functionality / performance: The pump is fully submersible and is immersed in the water. The maximum immersion depth is 12 meters. The pump automatically controls the delivery of water when the line to the consumer is open (tap open). When the consumer is closed, the pump switches to standby mode. The pump is then in start/stop mode and maintains the pressure in the pipe. When the consumer is opened again, the pump starts up again and pumps the water.  The GAP X120 has a maximum flow rate of 100 liters per minute and a maximum delivery head of 45 meters. This extremely powerful pump with a maximum pressure of 4.5 bar enables effortless and effective irrigation. The power consumption (P1) is 1.15 kW. A built-in thermal motor protection protects against overload and ensures that the pump switches on automatically after cooling down. Optionally, a pump base with side suction can be fitted for floating extraction. This allows the clean water to be sucked in below the water surface, not from the bottom. Quality: The use of stainless steel and high-quality plastic ensures a long service life. An integrated dry-running protection switches the pump off if there is a lack of water. A practical handle makes transporting the pump child's play. Protection class IP 68 makes the pump dustproof and waterproof. Conclusion: The GAP X120 submersible pressure pump is a modern, automatic pump that switches on and off automatically depending on the water requirement, has dry-running protection and thermal motor protection and is suitable for lateral and floating suction. Other features & notes: Salt water, dirty water, corrosive or highly flammable or explosive substances (e.g. petrol, kerosene, nitro thinner), oils such as heating oil and vegetable oils or foodstuffs must not be pumped! The water temperature must not exceed 35°C. The built-in, easy-to-clean stainless steel suction filter provides optimum protection against dirt.    Maintenance and installation instructions: If there is a risk of frost, drain the pump and store it in a frost-proof place. Please follow the installation and operating instructions. If you have any questions about this pump or other rainwater harvesting products, please contact our customer hotline for expert help.Customer hotline: 0385 77 337 72 (weekdays 8 am - 4 pm).  Our service promise: Guaranteed collection service within Germany in the event of a repair during the statutory warranty period of 24 months. Scope of delivery:  GAP X120 submersible pump complete with connection cable and Schuko plug (cable length 15 meters)Additional pump foot with lateral 1 inch external threadangle 90° (1 inch with internal thread)Stainless steel intake filter (1 inch external thread, for attaching the intake filter Change pump foot)Double nipple (1 inch, for screwing in the hose connection nozzle)2 hose connection nozzles each in 1 inch & ¾ inch with union nut (incl. 2 seals)Clamp clamp (31-34 mm)Rope (for suspending the pump and for easy removal from the cistern)Installation and operating instructions Delivery of this product by parcel service Are you looking for another pump...?Pump AMIGA MH1100 4M ... a dry-installable pressure pump for building services that reliably and quietly pumps clear water at max. 5.2 bar?Jet centrifugal pump ...a pump with handle that can be used as a single-stage centrifugal pump multiple and variable for garden irrigation. Klarwasserdruckpumpe GUP 46 ... a particularly durable pump that works as a submersible pressure pump in the cistern/tank under water and is operated via an automatic switch (pressure switch, e.g. installed in the house).Automatic submersible pressure pump GAP X 80  ... an automatic submersible pressure pump designed for the reliable extraction of clear water from rain barrels, rainwater systems, shallow tanks and cisterns for the irrigation of gardens and green spaces.

DetailsAnschlussbox zur Installation von Schlauchanschlüssen. Wird auf Leerrohr DN100, durch das auch die Wasserzuleitung geführt wird, gesteckt. Bündig zur Geländeoberfläche liegende Abdeckung schützt die Anschlüsse. Technische Daten Gewicht: 1,85 kgDurchmesser: 288 mmHöhe ges.: 248 mmAnschlüsse: 1/2" und 3/4"

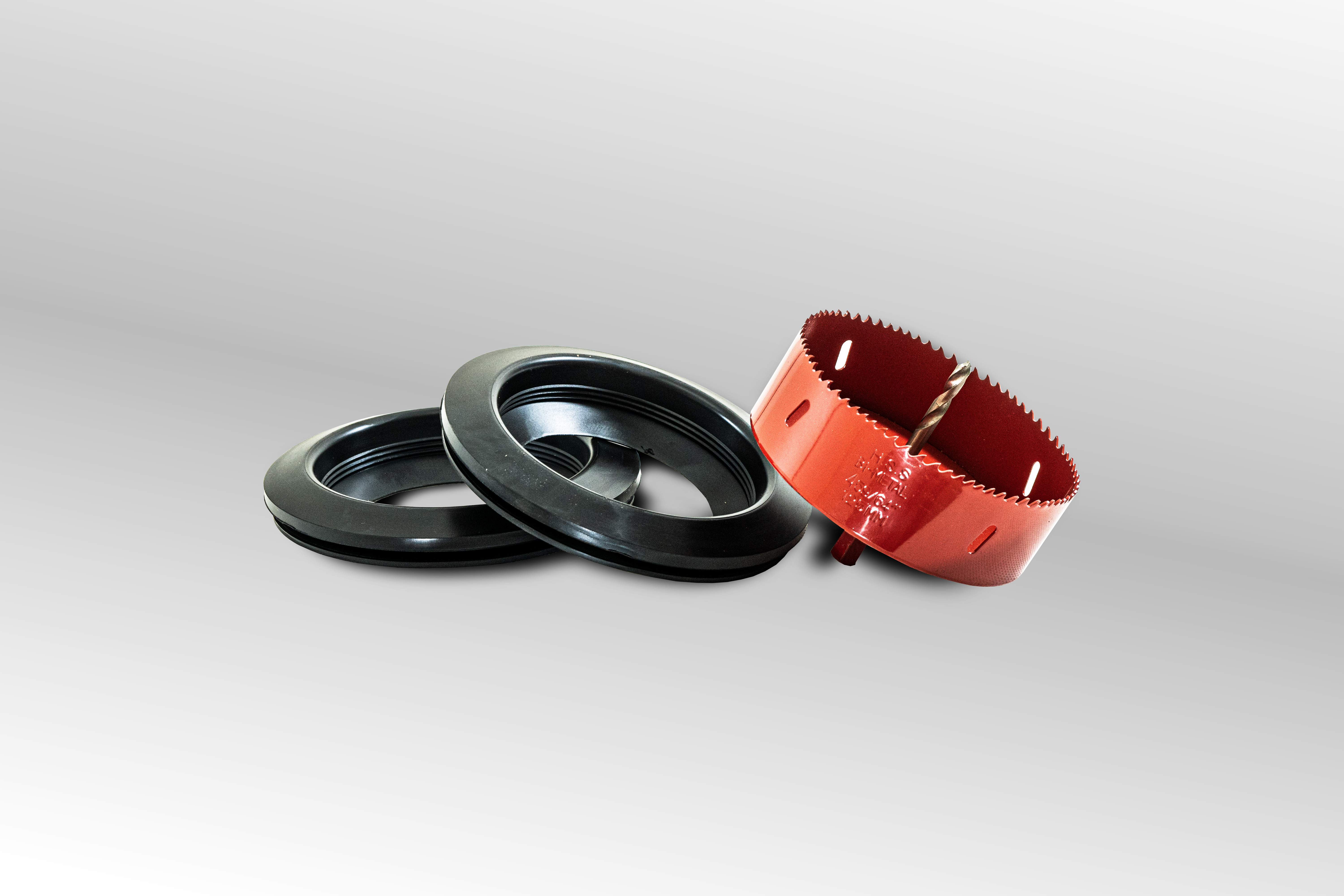

Lieferumfang 1x Lochkreissäge 125 mm mit Zentrierbohrer 2x Gummilippendichtung DN 100 (Ø110)

The Biovitor cleans rainwater by means of biological active principle, patented rainwater filter. Perfectly dimensioned and process-optimized size ratios of the chambers and diffusers ensure optimal biological processes with maximum efficiency.. Advantages of the Biovitor at a glance. functions on a purely biological basis.provides 100% rainwater yield.increases water quality retrofittable to almost all rainwater systems.cost-effective, as no wearing parts.cleaning approx. every 10 years
